With the release of APx500 v3.4.1, the APx Polar Plot utility has been revised to accommodate use of a manually operated turntable. As shown in Figure 1, there is now a turntable type called “None (manual rotation)”.

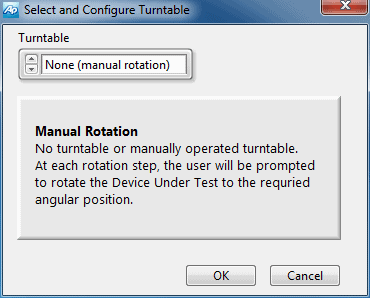

Figure 1: Select and Configure Turntable dialog
When this turntable type is selected, each time a DUT rotation is required, the user is prompted to manually rotate the DUT to the required position as shown in Figure 2.

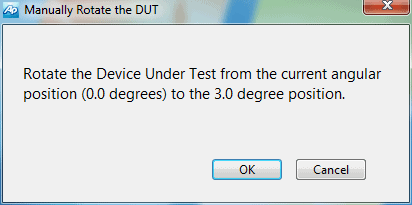

Figure 2: Prompt to rotate DUT
This new feature allows you to use the APx Polar Plot utility in settings where a conventional automated turntable cannot be employed.
