AAC Test


Analyzer
Key Factors		 Analog Inputs Analog Outputs Residual THD+N1
Bandwidth		 Digital Interfaces

APx555

  • Highest Performance
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
22-117 dB + 1.0 µV>1 MHz (2-ch)

APx52x Series

  • Performance
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
2 or 42-105 dB + 1.3 µV>90 kHz >1 MHz (opt)

Standard

AES3 / SPDIF2
ASIO

Optional

Bluetooth
Digital Serial
HDMI
PDM

APx58x Series

  • Multichannel
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
8 or 162 or 8-103 dB + 1.3 µV>90 kHz

APx515

  • Analog, Digital & Acoustic Test
  • Software Options
  • Production Test
  • Perceptual Audio Options
22-102 dB + 1.4 µV>90 kHz

Standard

AES3 / SPDIF

Optional

ASIO

2700 Series

  • High Performance
  • Simultaneous Dual-Domain Test
22-112 dB + 1.0 µV

Standard

AES3 / SPDIF (SYS-2722)

Optional

Digital Serial (via PSIA-2722)

APx511

  • Hearing Instrument Test
12-80 dB + 1.4 µV>20 kHz

None

Analyzer Key Factors Analog Inputs Analog Outputs Residual THD+N1 Bandwidth Digital Interfaces

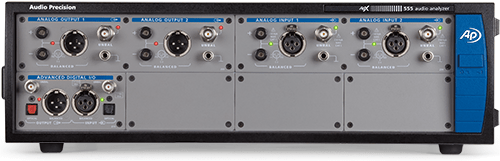

Instrument: APx555
Key Factors:
  • Highest Performance
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
Analog Inputs: 2
Analog Outputs: 2
Residual THD+N1: -117 dB + 1.0 µV
Bandwidth: >1 MHz (2-ch)
Digital Interfaces:

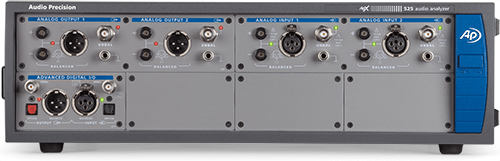

Instrument: APx52x Series
Key Factors:
  • Performance
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
Analog Inputs: 2 or 4
Analog Outputs: 2
Residual THD+N1: -105 dB + 1.3 µV
Bandwidth: >90 kHz >1 MHz (opt)
Digital Interfaces:

Standard

AES3 / SPDIF2
ASIO

Optional

Bluetooth
Digital Serial
HDMI
PDM

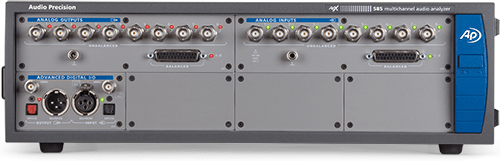

Instrument: APx58x Series
Key Factors:
  • Multichannel
  • Analog, Digital & Acoustic Test
  • Interface Options
  • Perceptual Audio Options
Analog Inputs: 8 or 16
Analog Outputs: 2 or 8
Residual THD+N1: -103 dB + 1.3 µV
Bandwidth: >90 kHz
Digital Interfaces:

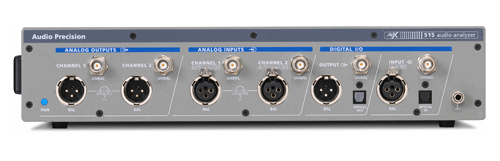

Instrument: APx515
Key Factors:
  • Analog, Digital & Acoustic Test
  • Software Options
  • Production Test
  • Perceptual Audio Options
Analog Inputs: 2
Analog Outputs: 2
Residual THD+N1: -102 dB + 1.4 µV
Bandwidth: >90 kHz
Digital Interfaces:

Standard

AES3 / SPDIF

Optional

ASIO

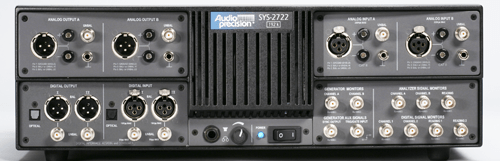

Instrument: 2700 Series
Key Factors:
  • High Performance
  • Simultaneous Dual-Domain Test
Analog Inputs: 2
Analog Outputs: 2
Residual THD+N1: -112 dB + 1.0 µV
Bandwidth:
Digital Interfaces:

Standard

AES3 / SPDIF (SYS-2722)

Optional

Digital Serial (via PSIA-2722)

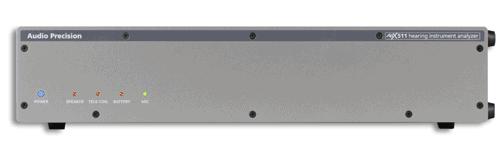

Instrument: APx511
Key Factors:
  • Hearing Instrument Test
Analog Inputs: 1
Analog Outputs: 2
Residual THD+N1: -80 dB + 1.4 µV
Bandwidth: >20 kHz
Digital Interfaces:

None

1: See individual instrument pages for more detailed information.
2: APx555 AES3 / SPDIF capabilities provided via Advanced Digital I/O (ADIO) module, which includes Advanced Master Clock (AMC) for jitter generation and analysis. AES3 / SPDIF capabilities for APx52x and APx58x Series analyzers provided via standard Digital I/O (DIO) module. ADIO and AMC modules are optional for APx52x and APx58x Series analyzers.
