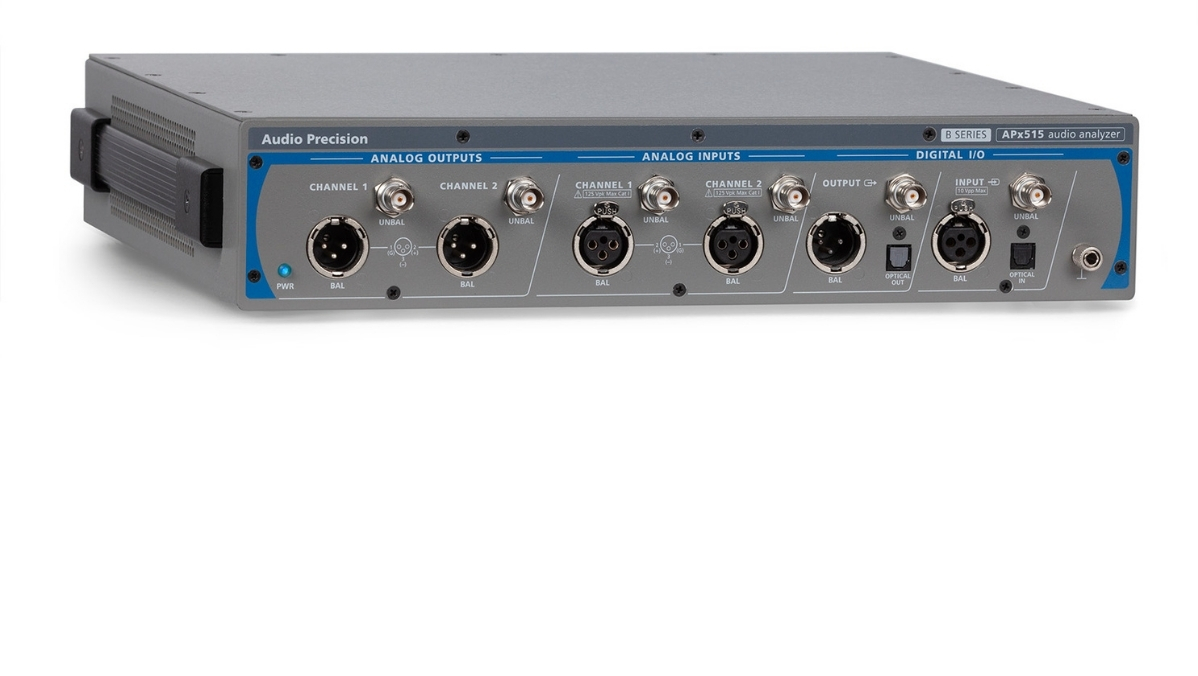

APx515 B Series Audio Analyzer

APx515 B Series Two-Channel Audio Analyzer

Ideal for production test and entry-level R&D applications

Configure options and view pricing for this analyzer



The B Series APx515 is a performance audio analyzer optimized for production test. It is a best-in-class instrument, offering a powerful combination of speed, performance, automation, reliability and ease-of-use.

The B Series APx515 can make all key audio measurements in less than three seconds. Despite its low cost, APx515 still has excellent performance, with a typical THD+N of –106 dB, 1.2M point FFTs and up to 216k digital I/O, as well as the one-click automation and ease-of-use of all APx B Series audio analyzers. Like all AP instruments, APx515 comes with an ISO:17025 Accredited Calibration and three-year warranty, so its results are trusted everywhere.

The B Series APx515 operates either as a stand-alone test unit with its own user interface, or it can be controlled by a master .NET or LabVIEW application. In either case, an operator can control the APx515 with a keyboard, foot switch or barcode scanner, or the system can be totally automated. Switchers and external devices such as pass/fail lights are also supported.


NOTE: B Series APx analyzers are only compatible with APx500 software version 5 and later. If your audio test requirements include the ability to run an earlier version of APx500 software, please contact your sales partner for further information.


Transfer Function
APx500 software release 5.0 adds the ability to measure the transfer function of electronic audio and electroacoustic devices. The transfer function measurement provides the complex frequency response function for a device, including the magnitude and phase (or real and imaginary components), using any broadband signal. This feature, a powerful addition to APx software’s Sequence Mode, allows any APx analyzer to be used as a multichannel dynamic signal analyzer or as a so called dual-channel FFT analyzer. With transfer function and any broadband signal, including speech, music, or noise, APx users can now assess the complex frequency response, coherence, and impulse response of their device or system. AP’s transfer function provides gapless and overlapped analysis of multiple acquisitions. It also includes a ground-breaking signal-based triggering that eliminates the need for a pilot tone in open-loop test applications, making it ideal for test of “smart” audio devices.

Open-Loop Chirp
With release v4.6, APx500 software now enables open-loop measurements using the logarithmically-swept sine, or chirp, test signal. This signal provides multiple, high-resolution results in a brief period of time and now APx users can employ the chirp in test scenarios where the signal may originate, or terminate, as a file on the device under test (DUT) or on a server connected to the DUT. This new capability is especially helpful to those developing smart devices (e.g., smart speakers, smartphones). Use of the open-loop chirp capability with B Series APx515 analyzers requires at least one software option or bundle that contain a supported chirp measurement (e.g., APX-SW-ACR, APX-SPK-RD).

Code-Free Automation and a Complete API
APx500 Measurement Software is the most advanced audio measurement interface available. Complex procedures that include user prompts, limits, and calls to external applications can be created directly in the GUI, saving time and money while ensuring painless updates over time, as no development is required.

Create custom interfaces and application-to-application automation using the comprehensive APx API. Extensive documentation and examples are provided for Visual Basic.NET, C#, MATLAB, LabVIEW, and Python. Projects and automation can be shared with other APx units anywhere in the world.

Common Software Platform
From a practical perspective, APx audio analyzers use a common software platform, making tests and results easier to share. All settings for a test are saved in a single project file, making it easy to replicate test setups between R&D and production facilities anywhere in the world. Project files are compatible with both B Series and Legacy APx instruments and each project is self-contained, so there’s never any worry about dependencies or broken links. Users can even embed waveform files and images within a project file.

For sharing measurement results with customers, contract manufacturers or management, APx automatically generates rich graphic reports, with highlighted pass / fail limits and options to export as PDF, HTML, Excel, CSV, RTF or MATLAB files.

Digital Protocol Analysis
Modern consumer devices such as televisions, Blu-ray players, and receivers typically use a digital interface such as S/PDIF, Toslink, HDMI to transmit audio signals.  In addition to the digital audio data, these interfaces also carry auxiliary information about the audio signal, metadata. The APx Metadata monitors decode and display metadata values as they are received from the device under test.

B Series APx515 Standard Measurements (Advanced measurements available for the APx515 are listed in the Options tab or the Software Options PDF.)
• Level & Gain
• Frequency Response
• THD+N
• Signal-to-Noise Ratio
• Noise
• Crosstalk
• Interchannel Phase
• DC Level
• Frequency Measurement
• Measurement Recorder
• Stepped Level Sweep
• Stepped Frequency Sweep
• Compare Encoded Bitstream
• Level Ratio
• CMRR
• SINAD
• Pass / Fail
• Scope Monitor
• DC Level Sweep
• Q-peak Noise
• Input Sample Rate





I/O OPTIONS

AES/SPDIF (B Series APx515 standard)
Provides AES3, AES/EBU balanced digital I/O on XLR; unbalanced SPDIF digital I/O on BNC; and TOSLINK optical digital I/O.

ASIO (B Series APx515 option)
Direct connection to ASIO-enabled devices. Supports up to 16 channels of ASIO at one time (with v4.0 software or later; two channels only when using earlier APx software versions). Requires either APX-SW-ASIO or one of the optional B Series APx515 software bundles (APX-SWB-2 or APX-SWB-6).

SOFTWARE

Start here: Summary of APx500 software options.

APx500 software options provide measurements and functionality beyond the core set of capabilities standard for the APx515. A variety of options are offered, suited to different specific test applications and requirements.

For B Series APx515 analyzers, and Legacy APx515 analyzers running version 5.0 software, software option licenses are electronically activated and are tied to a specific analyzer via serial number. For Legacy APx515 analyzers running APx software version 4.6 or earlier, software option licenses are enabled by one “iButtons” that mount on the rear of the instrument.

Electro-Acoustic Production Test (SW-SPK-PT)
The SW-SPK-PT option enables high-speed production test of electro-acoustic devices, providing key loudspeaker measurements in a single one-second sweep. Results include Rub & Buzz detection, essential Thiele-Small parameters, and impedance magnitude and phase. A proprietary modulated noise measurement is also provided to aid in detecting enclosure air leaks.

Electro-Acoustic R&D (SW-SPK-RD)
The SW-SPK-RD option delivers a complete suite of measurements and results tailored to the needs of designers and engineers developing electro-acoustic audio products. It includes key measurements and results such as complete Thiele-Small characterization; time-gated, quasi-anechoic Acoustic Response; Impedance analysis; plus the Loudspeaker Production Test measurements.

High-Speed Test (SW-HST)
SW-HST adds high-speed multitone and continuous sweep measurements to the APx515 B Series.

Advanced Measurement Library (SW-AML)
SW-AML is a library of 17 measurements to increase your B Series APx515’s capabilities, including the addition of IMD, Maximum Output Level, dynamic range, and FFTs.

Acoustic Response (SW-ACR)
This option adds five measurements for acoustic response testing with the APx515 B Series.

ASIO Interface (SW-ASIO)
SW-ASIO adds software connectivity for PC audio interfaces to the B Series APx515. Supports up to 16 channels of ASIO at one time (with v4.0 software or later; two channels only when using earlier APx software versions).

Bench Mode (SW-BEN)
SW-BEN adds Bench Mode capability to the B Series APx515 (requires APx515 Software Bundle (APX-SWB-2)).

APx515 Software Bundle 2 (APX-SWB-2)
Combines the ACR, AML, ASIO and HST software options for B Series APx515 into a single, cost-effective bundle. ASIO option supports up to 16 channels at one time (with v4.0 software or later; two channels only when using earlier APx software versions).

APx515 Software Bundle 6 (APX-SWB-6)
Adds Bench Mode (SW-BEN) to the measurement options and ASIO capability included in SWB-2 (listed above).

Perceptual Audio Test: POLQA (SW-POLQA-2)
Perceptual audio measurement returns a subjective assessment of speech quality using the next-generation POLQA algorithm for wide-band speech devices or devices with acoustic coupling. (Successor to PESQ with support for HD Voice, 3G, 4G/LTE and VoIP technologies)

Perceptual Audio Test: PESQ (SW-PESQ)
Widely-used, enhanced perceptual measurement for subjective assessment of speech quality on low-bandwidth devices. (PESQ algorithm)

Speech Intelligibility: ABC-MRT Measurement (SW-ABC-MRT)
The APx ABC-MRT plugin is a software option for APx500 audio measurement software that provides speech intelligibility measurement based upon the ABC-MRT speech processing algorithm developed by the Institute for Telecommunication Sciences (ITS) of the United States National Telecommunications and Information Administration (NTIA).

Speech Intelligibility: Speech Transmission Index (SW-STI)
SW-STI is a plug-in for conducting Speech Transmission Index (STI) measurements using the STIPA method.



SYSTEM PERFORMANCE
Residual THD+N (20 kHz BW)
–102 dB + 1.4 µV
Typical <–106 dB (1 kHz, 2.0 V)

GENERATOR PERFORMANCE
Sine Frequency Range
2 Hz to 80.1 kHz

Frequency Accuracy
3 ppm

IMD Test Signals
SMPTE, MOD, DFD
Maximum Amplitude (balanced)
16.00 Vrms

Amplitude Accuracy
±0.05 dB

Flatness (5 Hz–20 kHz)
±0.010 dB

Analog Output Configurations
unbalanced, balanced, common mode

Digital Output Sampling Rate
27 kS/s to 200 kS/s
27 kS/s to 108 kS/s Optical

Dolby / dts Generator
Yes (encoded file)

ANALYZER PERFORMANCE
Maximum Rated Input Voltage
125 Vpk

Maximum Bandwidth
>90 kHz

IMD Measurement Capability
SMPTE, MOD, DFD

Amplitude Accuracy (1 kHz)
±0.05 dB

Amplitude Flatness (10 Hz–20 kHz)
±0.010 dB

Residual Input Noise (20 kHz BW)
≤1.4 µV

Individual Harmonic Analyzer
d2–d10

Max FFT Length
1248K points

DC Voltage Measurement
Yes

SYSTEM REQUIREMENTS
• Microsoft Windows 10, or Windows 8, 64-bit operating systems.

• PC with 2 GHz or faster multi-core processor (2 or more cores)
Note: the Intel Atom dual-core processor does not have sufficient performance to run APx software.

• 2 GB or more RAM (4 GB or more recommended for Windows 8).

• More detailed information is available on our AP Software and Windows Compatibility chart

NOTES
• System performance is sensitive to processor speed; faster processors will yield faster results.

• APx500 is data intensive and it is recommended that other data-intensive applications not be run concurrently. This includes Audio Precision AP2700, APWIN or ATS.

FEATURES

Transfer Function
APx500 software release 5.0 adds the ability to measure the transfer function of electronic audio and electroacoustic devices. The transfer function measurement provides the complex frequency response function for a device, including the magnitude and phase (or real and imaginary components), using any broadband signal. This feature, a powerful addition to APx software’s Sequence Mode, allows any APx analyzer to be used as a multichannel dynamic signal analyzer or as a so called dual-channel FFT analyzer. With transfer function and any broadband signal, including speech, music, or noise, APx users can now assess the complex frequency response, coherence, and impulse response of their device or system. AP’s transfer function provides gapless and overlapped analysis of multiple acquisitions. It also includes a ground-breaking signal-based triggering that eliminates the need for a pilot tone in open-loop test applications, making it ideal for test of “smart” audio devices.

Open-Loop Chirp
With release v4.6, APx500 software now enables open-loop measurements using the logarithmically-swept sine, or chirp, test signal. This signal provides multiple, high-resolution results in a brief period of time and now APx users can employ the chirp in test scenarios where the signal may originate, or terminate, as a file on the device under test (DUT) or on a server connected to the DUT. This new capability is especially helpful to those developing smart devices (e.g., smart speakers, smartphones). Use of the open-loop chirp capability with B Series APx515 analyzers requires at least one software option or bundle that contain a supported chirp measurement (e.g., APX-SW-ACR, APX-SPK-RD).

Code-Free Automation and a Complete API
APx500 Measurement Software is the most advanced audio measurement interface available. Complex procedures that include user prompts, limits, and calls to external applications can be created directly in the GUI, saving time and money while ensuring painless updates over time, as no development is required.

Create custom interfaces and application-to-application automation using the comprehensive APx API. Extensive documentation and examples are provided for Visual Basic.NET, C#, MATLAB, LabVIEW, and Python. Projects and automation can be shared with other APx units anywhere in the world.

Common Software Platform
From a practical perspective, APx audio analyzers use a common software platform, making tests and results easier to share. All settings for a test are saved in a single project file, making it easy to replicate test setups between R&D and production facilities anywhere in the world. Project files are compatible with both B Series and Legacy APx instruments and each project is self-contained, so there’s never any worry about dependencies or broken links. Users can even embed waveform files and images within a project file.

For sharing measurement results with customers, contract manufacturers or management, APx automatically generates rich graphic reports, with highlighted pass / fail limits and options to export as PDF, HTML, Excel, CSV, RTF or MATLAB files.

Digital Protocol Analysis
Modern consumer devices such as televisions, Blu-ray players, and receivers typically use a digital interface such as S/PDIF, Toslink, HDMI to transmit audio signals.  In addition to the digital audio data, these interfaces also carry auxiliary information about the audio signal, metadata. The APx Metadata monitors decode and display metadata values as they are received from the device under test.

B Series APx515 Standard Measurements (Advanced measurements available for the APx515 are listed in the Options tab or the Software Options PDF.)
• Level & Gain
• Frequency Response
• THD+N
• Signal-to-Noise Ratio
• Noise
• Crosstalk
• Interchannel Phase
• DC Level
• Frequency Measurement
• Measurement Recorder
• Stepped Level Sweep
• Stepped Frequency Sweep
• Compare Encoded Bitstream
• Level Ratio
• CMRR
• SINAD
• Pass / Fail
• Scope Monitor
• DC Level Sweep
• Q-peak Noise
• Input Sample Rate





OPTIONS

I/O OPTIONS

AES/SPDIF (B Series APx515 standard)
Provides AES3, AES/EBU balanced digital I/O on XLR; unbalanced SPDIF digital I/O on BNC; and TOSLINK optical digital I/O.

ASIO (B Series APx515 option)
Direct connection to ASIO-enabled devices. Supports up to 16 channels of ASIO at one time (with v4.0 software or later; two channels only when using earlier APx software versions). Requires either APX-SW-ASIO or one of the optional B Series APx515 software bundles (APX-SWB-2 or APX-SWB-6).

SOFTWARE

Start here: Summary of APx500 software options.

APx500 software options provide measurements and functionality beyond the core set of capabilities standard for the APx515. A variety of options are offered, suited to different specific test applications and requirements.

For B Series APx515 analyzers, and Legacy APx515 analyzers running version 5.0 software, software option licenses are electronically activated and are tied to a specific analyzer via serial number. For Legacy APx515 analyzers running APx software version 4.6 or earlier, software option licenses are enabled by one “iButtons” that mount on the rear of the instrument.

Electro-Acoustic Production Test (SW-SPK-PT)
The SW-SPK-PT option enables high-speed production test of electro-acoustic devices, providing key loudspeaker measurements in a single one-second sweep. Results include Rub & Buzz detection, essential Thiele-Small parameters, and impedance magnitude and phase. A proprietary modulated noise measurement is also provided to aid in detecting enclosure air leaks.

Electro-Acoustic R&D (SW-SPK-RD)
The SW-SPK-RD option delivers a complete suite of measurements and results tailored to the needs of designers and engineers developing electro-acoustic audio products. It includes key measurements and results such as complete Thiele-Small characterization; time-gated, quasi-anechoic Acoustic Response; Impedance analysis; plus the Loudspeaker Production Test measurements.

High-Speed Test (SW-HST)
SW-HST adds high-speed multitone and continuous sweep measurements to the APx515 B Series.

Advanced Measurement Library (SW-AML)
SW-AML is a library of 17 measurements to increase your B Series APx515’s capabilities, including the addition of IMD, Maximum Output Level, dynamic range, and FFTs.

Acoustic Response (SW-ACR)
This option adds five measurements for acoustic response testing with the APx515 B Series.

ASIO Interface (SW-ASIO)
SW-ASIO adds software connectivity for PC audio interfaces to the B Series APx515. Supports up to 16 channels of ASIO at one time (with v4.0 software or later; two channels only when using earlier APx software versions).

Bench Mode (SW-BEN)
SW-BEN adds Bench Mode capability to the B Series APx515 (requires APx515 Software Bundle (APX-SWB-2)).

APx515 Software Bundle 2 (APX-SWB-2)
Combines the ACR, AML, ASIO and HST software options for B Series APx515 into a single, cost-effective bundle. ASIO option supports up to 16 channels at one time (with v4.0 software or later; two channels only when using earlier APx software versions).

APx515 Software Bundle 6 (APX-SWB-6)
Adds Bench Mode (SW-BEN) to the measurement options and ASIO capability included in SWB-2 (listed above).

Perceptual Audio Test: POLQA (SW-POLQA-2)
Perceptual audio measurement returns a subjective assessment of speech quality using the next-generation POLQA algorithm for wide-band speech devices or devices with acoustic coupling. (Successor to PESQ with support for HD Voice, 3G, 4G/LTE and VoIP technologies)

Perceptual Audio Test: PESQ (SW-PESQ)
Widely-used, enhanced perceptual measurement for subjective assessment of speech quality on low-bandwidth devices. (PESQ algorithm)

Speech Intelligibility: ABC-MRT Measurement (SW-ABC-MRT)
The APx ABC-MRT plugin is a software option for APx500 audio measurement software that provides speech intelligibility measurement based upon the ABC-MRT speech processing algorithm developed by the Institute for Telecommunication Sciences (ITS) of the United States National Telecommunications and Information Administration (NTIA).

Speech Intelligibility: Speech Transmission Index (SW-STI)
SW-STI is a plug-in for conducting Speech Transmission Index (STI) measurements using the STIPA method.

SPECIFICATIONS & REQUIREMENTS



SYSTEM PERFORMANCE
Residual THD+N (20 kHz BW)
–102 dB + 1.4 µV
Typical <–106 dB (1 kHz, 2.0 V)

GENERATOR PERFORMANCE
Sine Frequency Range
2 Hz to 80.1 kHz

Frequency Accuracy
3 ppm

IMD Test Signals
SMPTE, MOD, DFD
Maximum Amplitude (balanced)
16.00 Vrms

Amplitude Accuracy
±0.05 dB

Flatness (5 Hz–20 kHz)
±0.010 dB

Analog Output Configurations
unbalanced, balanced, common mode

Digital Output Sampling Rate
27 kS/s to 200 kS/s
27 kS/s to 108 kS/s Optical

Dolby / dts Generator
Yes (encoded file)

ANALYZER PERFORMANCE
Maximum Rated Input Voltage
125 Vpk

Maximum Bandwidth
>90 kHz

IMD Measurement Capability
SMPTE, MOD, DFD

Amplitude Accuracy (1 kHz)
±0.05 dB

Amplitude Flatness (10 Hz–20 kHz)
±0.010 dB

Residual Input Noise (20 kHz BW)
≤1.4 µV

Individual Harmonic Analyzer
d2–d10

Max FFT Length
1248K points

DC Voltage Measurement
Yes

SYSTEM REQUIREMENTS
• Microsoft Windows 10, or Windows 8, 64-bit operating systems.

• PC with 2 GHz or faster multi-core processor (2 or more cores)
Note: the Intel Atom dual-core processor does not have sufficient performance to run APx software.

• 2 GB or more RAM (4 GB or more recommended for Windows 8).

• More detailed information is available on our AP Software and Windows Compatibility chart

NOTES
• System performance is sensitive to processor speed; faster processors will yield faster results.

• APx500 is data intensive and it is recommended that other data-intensive applications not be run concurrently. This includes Audio Precision AP2700, APWIN or ATS.
